5.0 EEPROM WRITE UTILITY
The DLP-USB1232H has the option to accept manufacturer-specific information that is written
into EEPROM memory. Parameters that can be programmed include the VID and the PID
identifiers, the manufacturer's product string and a serial number.
MPROG is the latest EEPROM programming utility for the FT2232H device. You must install
the latest release of the CDM drivers in order to run this application. If you have CDM drivers
installed on the PC that is to perform the EEPROM write process, you can run MPROG and
update the EEPROM contents with either mode (VCP or D2XX) active.
6.0 QUICK START GUIDE
This guide requires the use of a Windows XP/Vista PC that is equipped with a USB port.
1. Download the latest CDM device drivers from either www.dlpdesign.com or
www.ftdichip.com . Unzip the drivers into a folder on the hard drive.
2. Connect the DLP-USB1232H module to the PC via a USB ‘A’ to mini-B cable. This action
initiates the loading of the USB drivers. When prompted, select the folder where the device
drivers were stored in Step 1. Windows will then complete the installation of the device
drivers for the DLP-USB1232H module. The next time the DLP-USB1232H module is
attached, the host PC will immediately load the correct drivers without any prompting.
Reboot the PC if prompted to do so.
At this point, the DLP-USB1232H is ready for use. Note that if the DLP-USB1232H is
configured for 245 FIFO mode that it will appear non-responsive if data sent from the host PC is
not read by an attached microcontroller, microprocessor, DSP, FPGA, ASIC, etc.

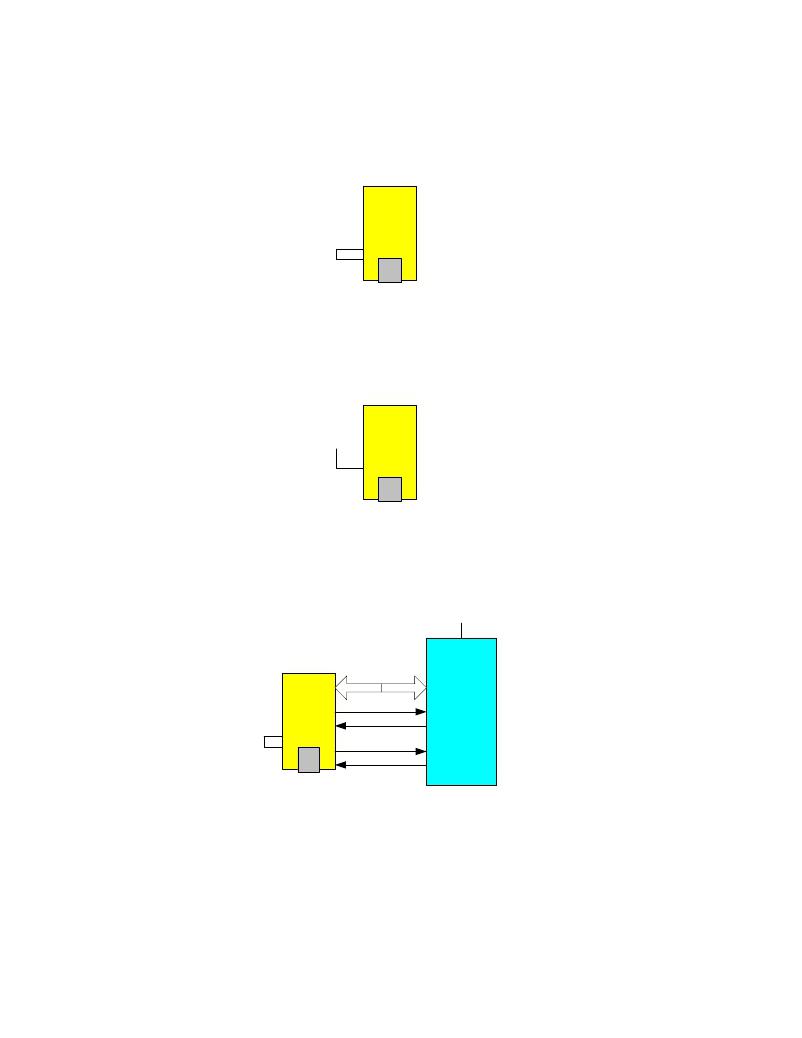

7.0 PINOUT DESCRIPTION
Pin 18
Pin 1
USB
Pin 10
Pin 9
Top View
(Interface Headers on bottom of PCB)
Rev. 1.3 (December 2009)
7
? DLP Design, Inc.
